- This machine is exclusively designed for cutting circlip grooves in the pinhole of pistons
-
The spindle head mounted on a pedestal has inner and outer spindles running eccentrically one inside another at different speeds in another stationary sleeve.
When foot switch is pressed the inner spindle carrying the cutting tool makes the groove while running eccentrically.
After completion of groove cutting, the drive is automatically cut-off for both spindles and the tool is brought to a stop accurately in retracted condition for piston to be taken out
-
The specialty of this machine is that it is provided with one pair of Electro-Magnetic clutch and brake for starting and stopping of the drive for each cycle while the motor
is continuously running. Normally a brake motor is used in such an application which burns out frequently due to the high rate of on-off cycle
-

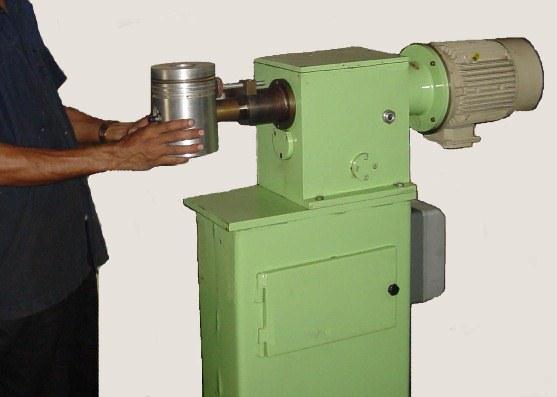

The piston is supported on the stationary sleeve along the complete length of the pin bore and held in hand.
The inserting and removal of the piston is also by hand
-
Different models and their specifications are shown below. Choose a machine and toolings as per your requirement before approaching us for an offer
|
