Piston Die Casting Machine
Contact us for a brochure

GC65 machine with die

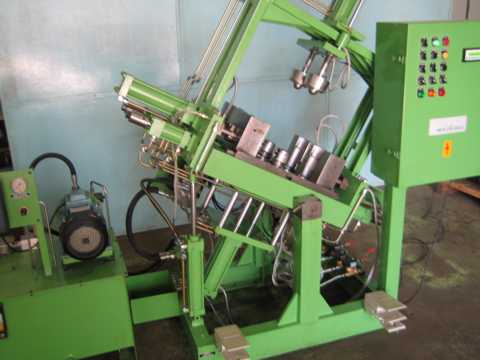

GC100/GC120 machine with die-tilted

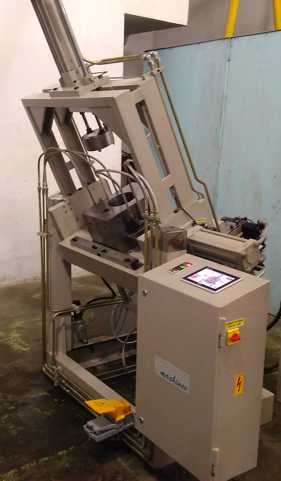

GC140/GC175 machine with die-tilted

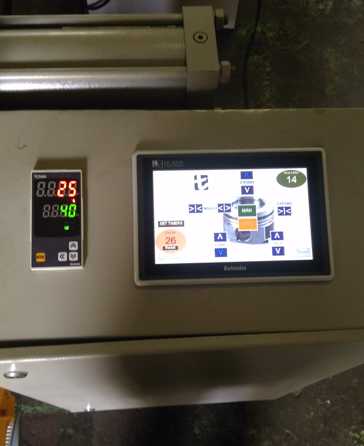

GC machine with HMI with in-built PLC

Click here to view more Piston
Die Casting Machine photos

  • All our piston die casting machines are proven in design and are successfully working in various piston manufacturing companies. They are designed for high consistent quality piston casting.
  • Various models of PISTON DIE CASTING MACHINES available are

    Model

    Piston Dia. Range [mm.]

    Bed Tilting

    No. of Cavities

    GC 65

    40-70

    No

    2

    GC 100

    70-100

    Yes

    2

    GC 120

    90-120

    Yes

    2

    GC 140

    100-140

    Yes

    1

    GC 175

    140-175

    Yes

    1
  • These are semi-automatic gravity die casting machines. All die parts are opened and closed automatically. Due to the hydraulic die open and close, die damage is minimum. The only manual operation is pouring of molten metal and picking out the solidified piston.
  • All machines can accommodate 5 piece core design
  • These machines are capable of casting pistons with RING and also AS-CAST Crowns
  • These machines have bed tilting facility for pistons above 70mm in diameter
  • All these machines are hydraulically operated with in-built powerpacks
  • The machines are controlled by touch-screen HMI with built-in PLC (Programmable Logic Controller)
  • The machines are provided with cooling valves
  • Centralised lubrication system automatically lubricates all sliding surfaces at regular intervals
